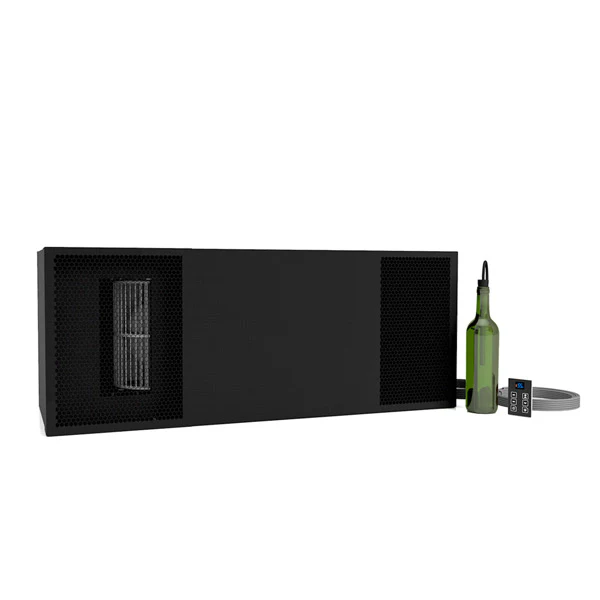

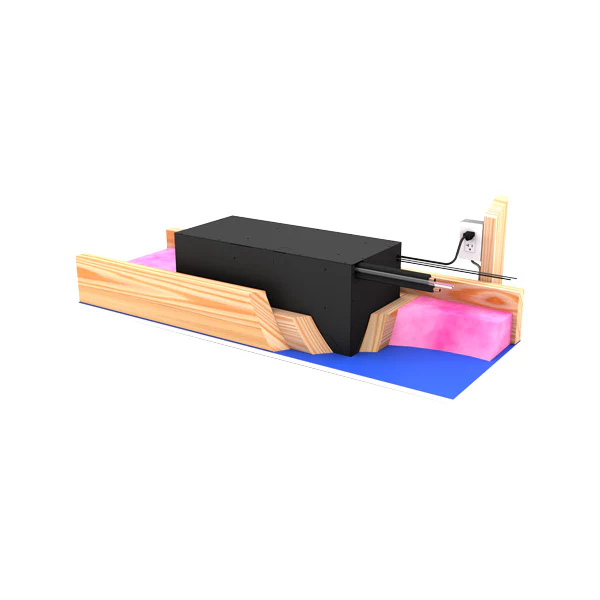

The WhisperKOOL Ceiling Mount 8000 is a powerful, ceiling-mounted split system evaporator designed to deliver efficient, quiet cooling for large wine cellars—without taking up valuable wall space. Created for wine collectors and cellar contractors who want climate control without visual disruption, this unit installs discreetly in the ceiling, preserving the aesthetics of your cellar while maximizing bottle storage capacity.

By drawing in the warm air that rises to the ceiling, the Ceiling Mount 8000 cools and distributes air evenly throughout the cellar for consistent temperature control. This hidden evaporator is ideal for maintaining optimal conditions while keeping the cooling equipment virtually invisible.

Built with high-quality, professional-grade components, the Ceiling Mount 8000 ensures long-term durability and high performance. Its smart design also allows for easy installation and maintenance access, making it a preferred choice for both residential and commercial custom wine cellar projects.

Choose the WhisperKOOL Ceiling Mount 8000 for a space-saving, reliable, and low-profile solution that keeps your wine at the perfect temperature—while keeping the cooling system out of sight.

Designed & Assembled in California

***** Additional Information *****

Dimensions:

Evaporator: 35.75" L x 14.5 "D x 12.75" H

Condenser: 31.18"L x 10.75"W x 21.18" H

Lineset:

Suction: 1/2" OD (5/8" greater than 50ft)
Liquid: 1/4" OD

Drainline:

1/4” ID clear plastic tubing

Technicians and installers will be happy to hear that the electrical wiring, bottle probe wiring, and the line set are all located at the bottom of the unit, rather than the top. Not only are the essential components relocated and easier to access, flare fittings will now be utilized so that there is no brazing needed in the field. The redesign includes e-coated duramax evaporator coils which will improve system performance, and a new looking hex mesh grille with an air filter to protect the unit from the intake of potentially harmful debris during the initial start-up.

24Volt

For the Split System series, a 24V option is also available which allows you to tie into your home electronic thermostat or home automation system, please inquire.

 Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.  Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.

• Virtually silent operation
• Liquid bottle probe
• Humidity control
• Alarm options
• 55°F temperature delta
• 220V Condenser can be placed outdoors

***** Technical Specs *****

8000 Ceiling Mount  Ductless Technical Specs

***** Product Manuals *****

Ceiling Mount 8000 Overview Manual

Ceiling Mount 8000 Owners Manual

8000 Ceiling Mount  Ductless Tutorial Video

***** Warranty *****

Warranty Check List – R134a Products

Warranty Check List 8000 Ceiling Mount – Ductless

Split System Product Warranty

A limited 2-year product warranty with up to an additional(1) year grace period for installation is offered with all split systems. While the warranty

***** Shipping Information *****

Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website.  You will have an opportunity to not complete your order at that time.

For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contacted by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
