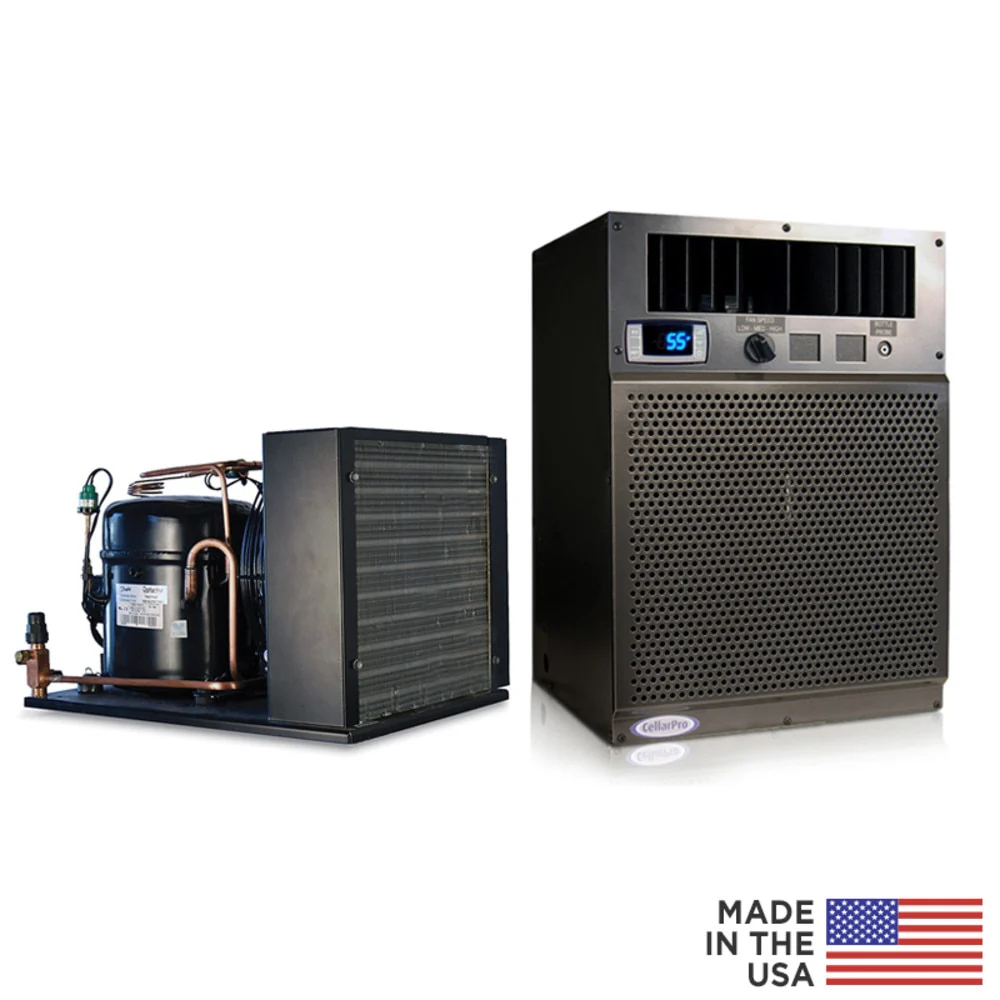

The CellarPro 4000S-EC Cooling Unit delivers high-capacity climate control for wine cellars up to 1,000 cubic feet. Built with energy-efficient EC fans and a split-system configuration, it separates the evaporator from the condenser to reduce noise and heat within living areas. This unit is engineered for both residential and commercial wine storage, maintaining stable temperature and humidity levels for optimal wine preservation.

***** Additional Information *****

Designed for flexible installations, the 4000S-EC can be mounted with the evaporator inside the cellar and the condenser placed outside, up to 100 equivalent feet away via line-set (sold separately). Its variable-speed fan enables quiet operation or maximum performance depending on your needs, and optional accessories make it adaptable for external environments or low-temperature conditions.

Key Features:

• Cools wine cellars up to 1,000 cu. ft. with proper insulation
• Split-system design moves heat and noise outside of the cellar
• Energy-efficient EC fans with variable-speed evaporator fan
• Supports internal or external condenser placement
• Optional low ambient kit for cold-weather installations

Specifications:

• Cooling Capacity: 2/5 Ton Nominal
• Recommended Cellar Size: Up to 1,000 cu. ft. (with R19 insulation, 55°F setpoint, ≤85°F ambient)
• Installation Range: Line-set can run up to 100 equivalent feet
• Ambient Operating Range: Above 40°F (requires Low Ambient Kit for down to -20°F)
• Power: Standard electrical supply; energy-efficient EC motors

Additional Options:

• Exterior hood for condenser in outdoor environments
• Low Ambient Heater Kit includes fan cycling switch and compressor heater
• Oversized shipping notice: Contact may be required before processing

***** Technical Specs *****

• Condenser Operating Temperature Range: 0°F to 110°F
• Certified by ETL to UL standards
• Active Humidity Control
• Digital Controls (LED Display)
• 115V AC / 60Hz
• Auto-Defrost Cycle
• Electronic Thermostat
• Energy-Saver Mode
• Quick-Chill Mode
• Audible and Visual Alarms
• Min/Max Temperature
• Maintenance-Needed Indicator
• Power On/Off Switch

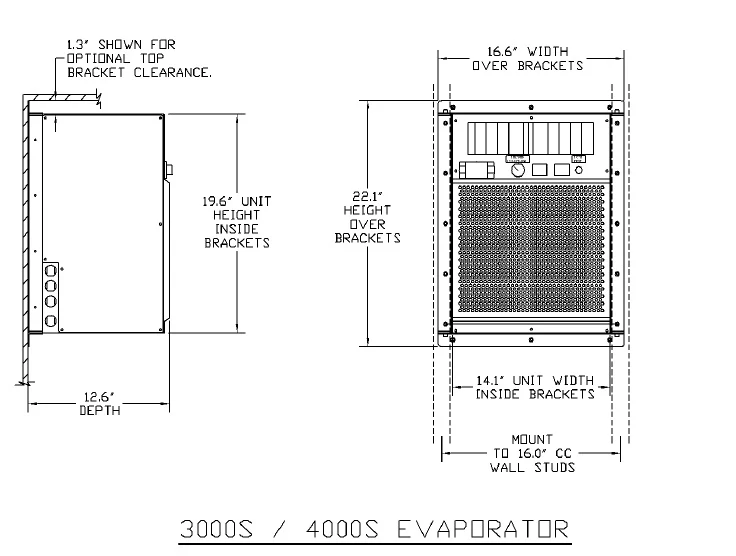

Size (Evaporator): 16.6"W x 12.6"D x 22.1"H

Weight: 40 lbs/ea.

Power/Rating:
115V AC / 60 Hz

System Amps:
- Common dedicated 15-amp circuit is required to power the unit.
- Startup: 40.0 Amps
- Unit Amp Rating: 8.4 Amps (high fan speed)

BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 3282 / 51 dbA
- Med Fan Speed: 3617 / 55 dbA
- High Fan Speed: 3938 / 63 dbA
- 2/5 Ton Nominal

Condensing Unit Decibels
- Indoor: 64
- Outdoor: 62

***** Product Manuals *****

Celling Mounted Split System Owner's Manual
Wall Mounted Split System Owner's Manual
Water Cooled Split System Owner's Manual

Split System Spec Sheet

Split System Condensing Unit Cut Sheets
Split System Evaporator Cut Sheets

Split System Check List

Split System Configuration Options

***** Warranty *****

A limited 2-year product warranty is offered entire system from date of purchase.

Cellar Pro Standard Warranty

IMPORTANT NOTE: Be sure to have the installing technician complete the CellarPro checklist upon installation. You will then send this to Cellar Pro to activate your warranty.
