Breezaire WKL 6000 Wine Cellar Cooling System

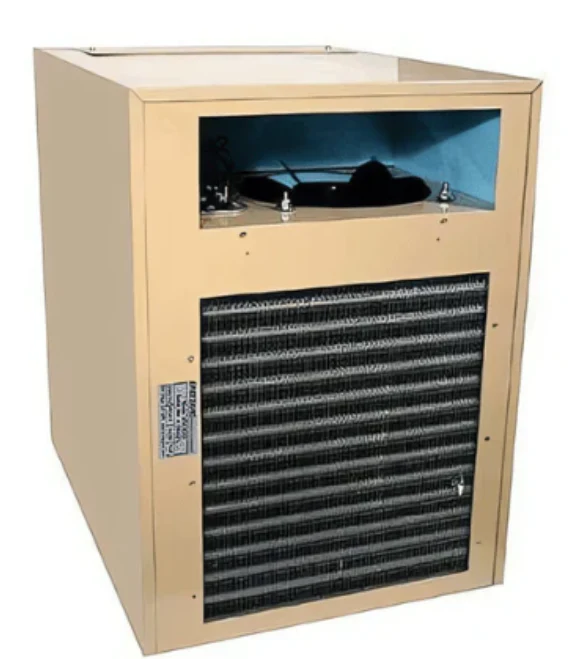

The Breezaire WKL6000 Wine Cellar Cooling Unit is a powerful through-the-wall system engineered for wine cellars up to 1,500 cubic feet. This self-contained unit offers direct installation into a wall opening, providing reliable, space-efficient cooling without the need for ducting. With a thermal capacity of 3,000–4,000 BTU, it is well-suited for mid- to large-sized residential cellars, though sizing should always consider insulation, glass exposure, and room layout.
***** Additional Information *****
Featuring a bright green LED digital display, the WKL6000 allows for easy temperature control between 48°F and 63°F, with air sensor or optional bottle probe regulation. It also supports a flexible Cold Air UP configuration, allowing cool air to be directed upward when the evaporator is mounted lower in the cellar.
Key Features:
- Cooling capacity for up to 1,500 cu. ft. with proper insulation
- Through-the-wall installation simplifies setup in dedicated wine rooms
- Digital LED display for easy temperature monitoring and adjustment
- Cold Air UP configuration for low-mounted evaporator setups
- Bottle probe (optional) for more precise temperature control
Specifications:
- Thermal Output: 3,000–4,000 BTU
- Dimensions: 16.25"W x 22.00"H x 22.25"D
- Electrical Requirements: 115V / 9.5 amps
- Operating Temperature Range: 48°F to 63°F
- Finish: Tan
- Warranty: USA only (Canadian purchases are final sale, no warranty)
Installation Notes:
- Cold Air UP feature can be enabled on-site (for WKL6000 and up)
- Consult Rosehill reps to assess thermal load or if racking is also required
***** Technical Specs *****
| BREEZAIRE WKL SERIES MODEL COMPARISON CHART | ||||||
|---|---|---|---|---|---|---|
| Model: | WKL1060 | WKL2200 | WKL3000 | WKL4000 | ||
| Dimensions (inches): | 14.25W x 13.25H x 16.38D | 14.25W x 13.25H x 16.38D | 14.25W x 19.75H x 21.63D | 14.25W x 19.75H x 21.63D | ||
| Thermal Capacity (BTU) | 1060 | 2200 | 3000 | 4000 | ||
| Estimated Max. Bottle Capacity | 800 | 1000 | 3000 | 4000 | ||
| Max. Cubic Footage | 160 | 265 | 650 | 1000 | ||
| Electrical Req: | 115V/2.8 amps | 115V/5amps | 115V/7.5amps | 115V/8.5amps | ||
| Color: | Tan | Tan | Tan | Tan | ||
| Weight: | 43 lbs. | 49 lbs. | 69 lbs. | 70 lbs. | ||
A dedicated 15 amp circuit (units up to 4000 BTUs) or 20 amp circuit (units from 6000-8000 BTUs) is strongly recommended.
***** Product Manuals *****
WKL Series Installation Instructions
Bottle Probe Instructions
Sentry III Owners Manual
***** Warranty *****
Breezaire offers a warranty in the USA only. All parts used in this unit are warranted for Five years (60 months) from the original retail purchase. Factory labor is provided at no cost for one year (12 months) from the original retail purchase.
***** Shipping Information *****
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
