Breezaire WKCE 1060 Compact Wine Cellar Cooling System
The Breezaire WKCE 1060Â wine cellar cooling unit is a compact design with cold air discharge on the bottom of the unit, which makes it ideal to be installed in cabinets. Because of the configuration, the WKCE series wine refrigeration units are not rated for specified number of cubic feet.
 Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.Â
* IMPORTANT * Manufacturer only honours warranty in the USA only. Canadian purchases do not have warranty and units are purchases as-is.
***** Additional Information *****
Electronic Series - Digital Readout

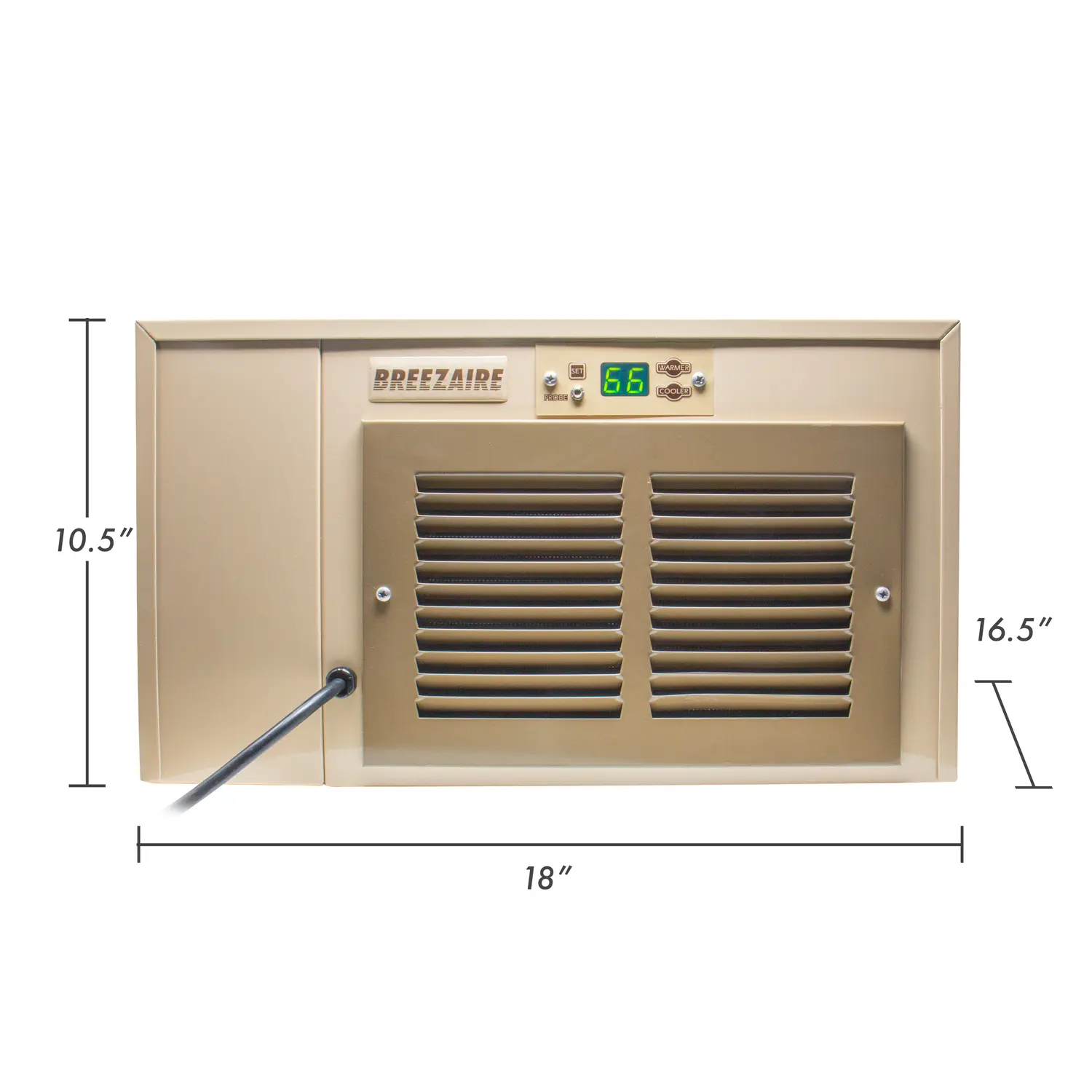

Dimensions: 18"W x 10½"H x 16½"D
BTUH (BTU's per Hour): 1060
Electrical Req: 115V/3 amps
Color: Tan
The Breezaire WKCE series wine cellar cooling units are not rated for specified number of cubic feet. They are intended for cabinets and other constricted enclosures. Ask our Breezaire specialists for details.
The Breezeway WKCE wine cellar cooler comes with Digital Electronic (Sentry III) (WKCE Model).

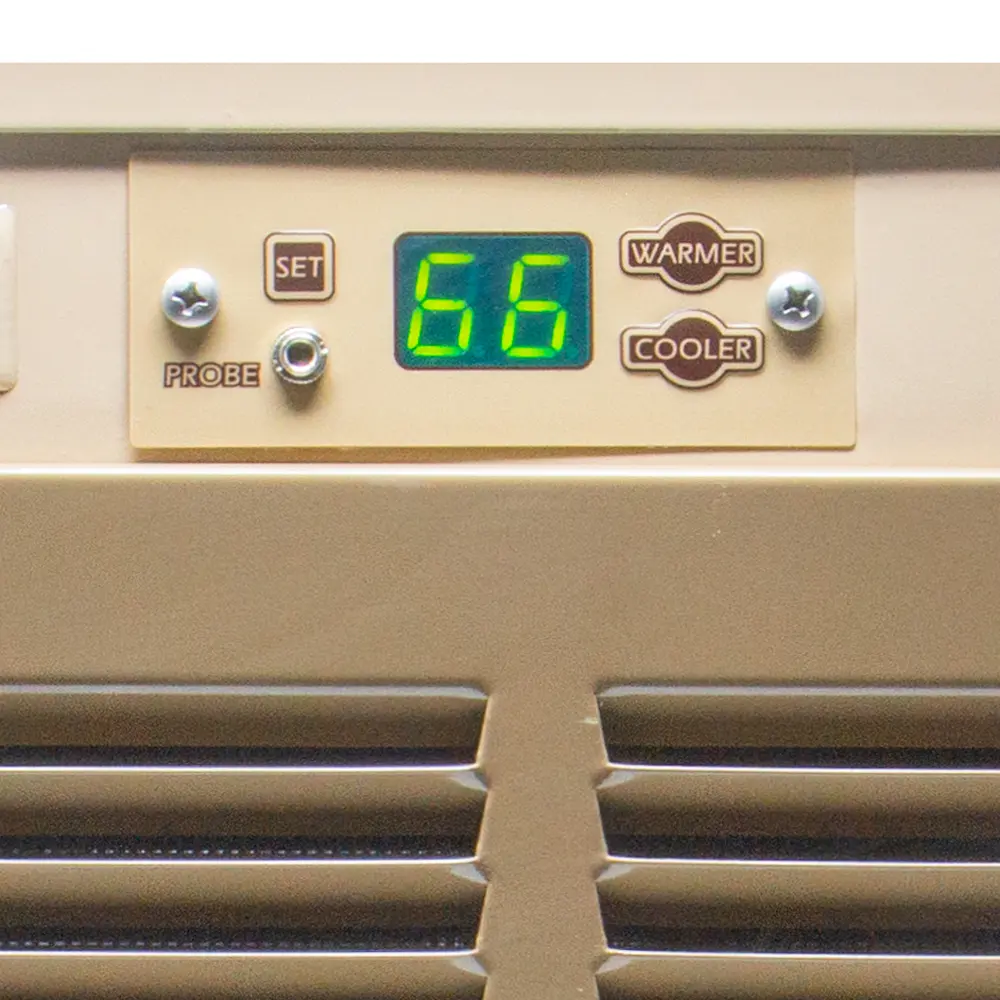

The WKCE Models have a digital electronic (Sentry III) thermostat that adds additional safety and convenience features:
- Large, easy to read, green LED display.
- Accurate, easy to adjust (no tools required) readable set points with continuous reading of enclosure temperature or displaying of set point when changing enclosure temperatures.
- Specialized power outage protection.
- Controls temperature by enclosure air sensors or optional bottle probe.
The bottle probe is an option, please specify at time of ordering if you would like it.

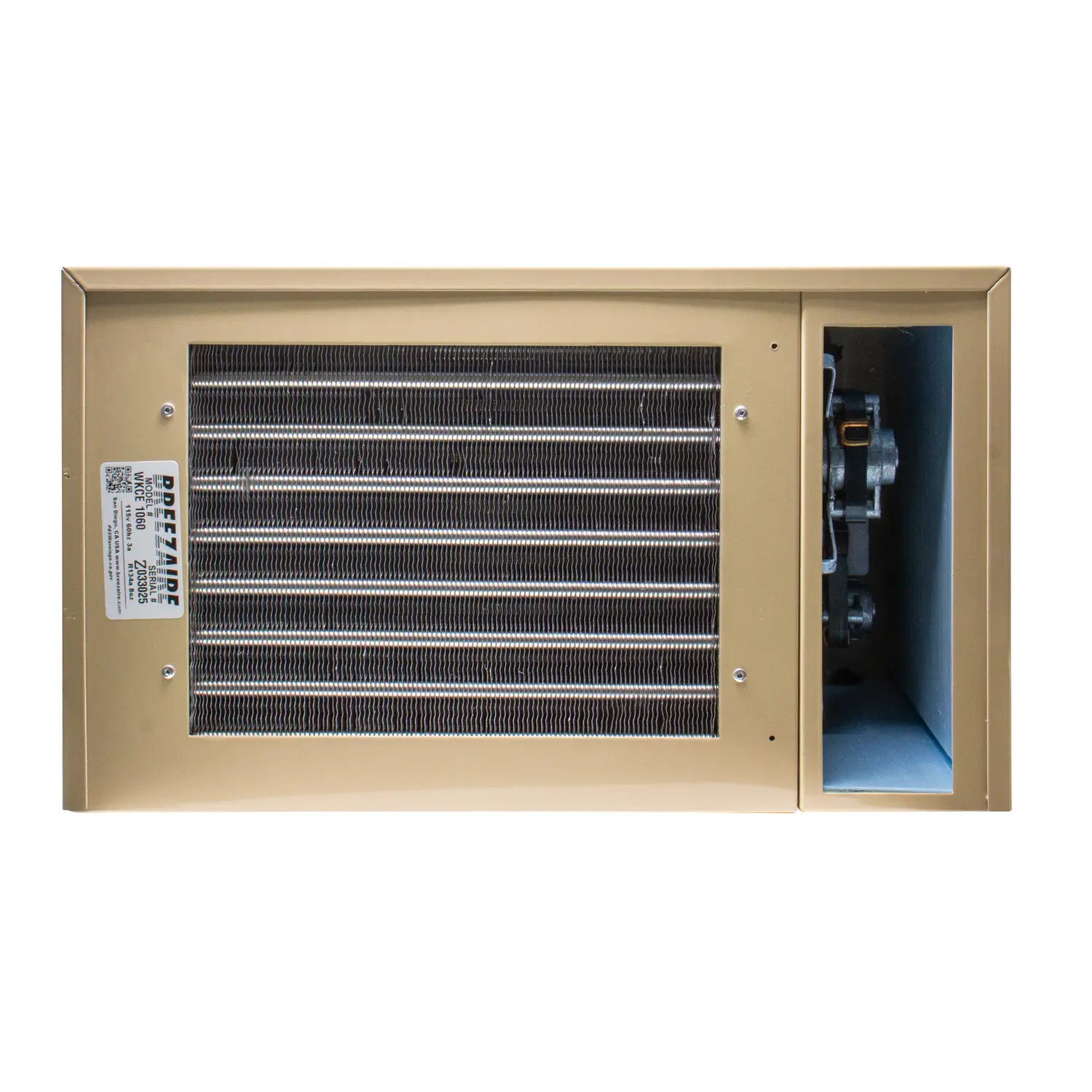

The Compact units can be configured with hot air blowing out the top of the unit as opposed to at the back which is standard. The fresh air intake is still needed at back of unit so plenty of room is needed for air circulation or perhaps have wall cut out to adjacent space.
The Compact units can also be ordered with “cord down”.
Â
***** Technical Specs *****
| BREEZAIRE WKC/WKCE SERIES MODEL COMPARISON CHART | ||||||
|---|---|---|---|---|---|---|
| Model: | WKCE 1060 | WKCE 2200* | ||||
| Dimensions (inches): | 18.00W x 10.50H x 16.50D | 18.00W x 10.50H x 16.50D | ||||
| BTUH (BTU's per Hour) | 1060 | 2200 | ||||
| Electrical Req: | 115V/3 amps | 115V/4 amps | ||||
| *Also available in 230V/ 50Hz/ 3Phase | ||||||
| Color: | Tan | Tan | ||||
| Weight: | 43 lbs. | 49 lbs. | ||||
| Â | ||||||
 A dedicated 15 amp circuit is recommended for the compact series.
A dedicated 15 amp circuit (units up to 4000 BTUs) or 20 amp circuit (units from 6000-8000 BTUs) is strongly recommended.
***** Product Manuals *****
WKCE Series Installation Manual
Bottle Probe Instructions
Sentry III Owners Manual
***** Warranty *****
Breezaire offers a warranty in the USA only. All parts used in this unit are warranted for Five years (60 months) from the original retail purchase. Factory labor is provided at no cost for one year (12 months) from the original retail purchase.
***** Shipping Information *****
Large Item Shipping: Additional Shipping charges may be charged for accessory items ordered on their own without the cooling unit. Rosehill Reserves the right to contact you should shipping charges end up substantially higher than advertised on our website. You will have an opportunity to not complete your order at that time.
For CAD customers - Shipping Charges for importation, brokerage, duties are extra and might be charged extra, however you will be contact by a Rosehill Customer Service Representative to discuss it further. Local delivery included.
